The Julia extension supports debugging of all types of Julia programs and applications.
For general debugging features such as inspecting variables, setting breakpoints, and other activities that aren't language-dependent, review VS Code debugging.
- Open a Julia file in VS Code.
- Click the Run button. You will now see the default debugger start panel:
- Click Run and Debug (or select
F5) to run the active Julia fila in the debugger. Output is displayed in the Julia Debug terminal.
In this example the whole program ran through in one go and finished without any problem. Lets make this example a bit more useful by setting a breakpoint on
line 11. We do this by simple clicking with the mouse in the left most column of the code editor:
The red dot shows us that we have now set a breakpoint. Next we start the program again (either by clicking on
Run and Debug or pressing
F5). When the program reaches
line 11, it will pause:

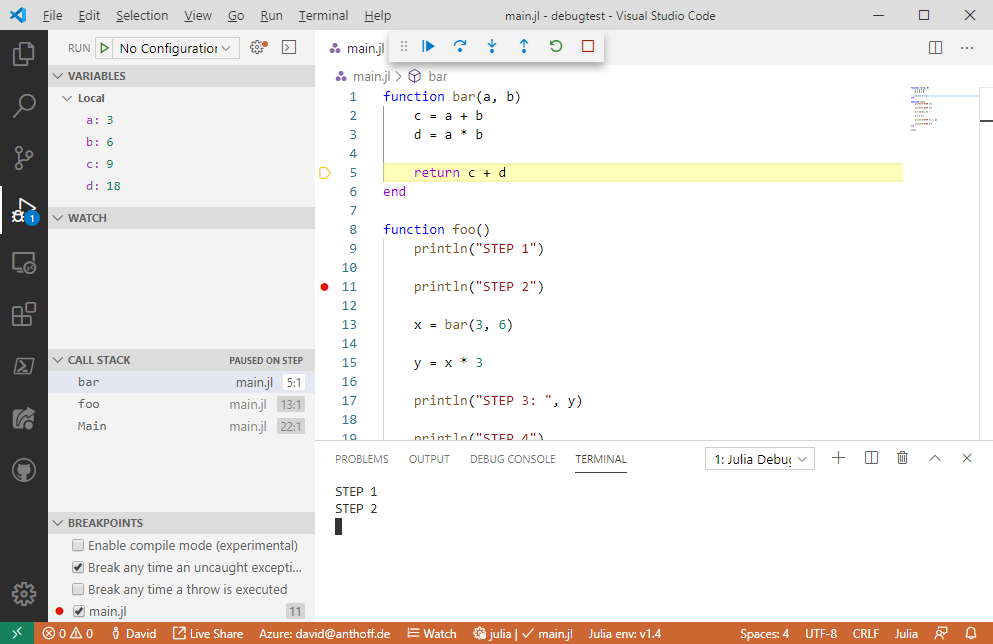

The yellow line shows us the location that we will execute next if we continue to run the program. We can also see where we are in the call stack and a list of all breakpoints. At the top of the text editor we now see a toolbar with commands for common debug actions:
Step Out etc. Lets click once on
Step Over and then
Step Into. We are now paused on the first line of the bar function:
Variables view now shows us what local variables we have in this function and what their current values are. As we step through the program, and eventually reach the end of the bar function, the list of local variables gets longer, i.e. we now also see the values for
Let us set another breakpoint on
line 15 and then continue the program until it hits that breakpoint. Then we click on
Debug Console and see a view like this:
In this view we can evaluate arbitrary Julia code in the context of the current function. For example, we can compute the log of x by running
We can also change the value of any local variable while the program is paused. For example, to change the value of x, we can double click in the
Variables section on the value 27 next to x and then enter any arbitrary Julia expression. The value this expression returns will become the new value for the variable x. In the following example We changed the value of x to a string:
This concludes the very basic walk through. I’ll now want to highlight some other features.
There are two different ways to start the debugger.
- The first you already learned in the walk through: you run a Julia file in the debugger.
- The second allows you to debug code in the interactive REPL.
In our example we started the currently active Julia file in the debugger. This is the most basic way to start debugging, but there are many more options that you can configure in a VS Code launch.json file. Examples include setting a fixed Julia file as the startup file, configuring command line arguments etc. The launch.json functionality is described in more detail in the VS Code debugger documentation.

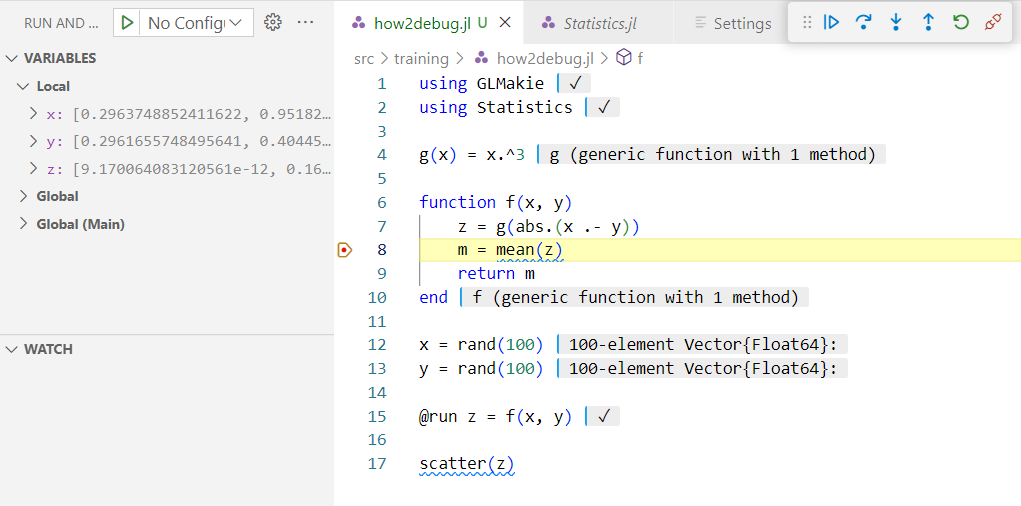

You can also start the debugger from the REPL. In that situation the debugger will attach to the already running REPL. To start such a debug session you use two macros in the REPL: the
@run macro. Both are very simple: they will start the debugger on the code that was passed to the macro. The
@run macro will run the code until a breakpoint is hit, while the
@enter macro will pause the debugger on the first line of the code. For example, you can start debugging the println function from the REPL by entering
You already learned how you can easily set breakpoints in the source code itself. There are two more options for breakpoints: function breakpoints and condition on breakpoints.
If you click on the little
+ sign in the
BREKPOINTS view, you can add a function breakpoint. Simply enter the name of the function you want to break on. You can also configure it to only break on specific methods by specifying a signature like
If you click with the right mouse onto a breakpoint in the editor, you can select an option
Edit breakpoint..., and then you can add a condition on the breakpoint. You can enter any valid Julia expression that returns a
Bool value here. You have of course full access to all local variables in this expression.

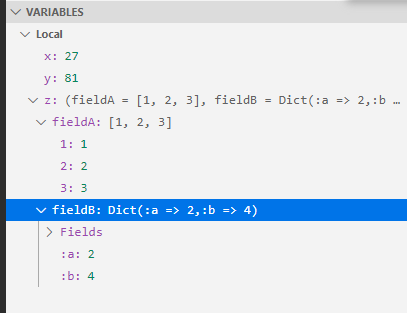

Composite variables, arrays and dictionaries have full tree drill down support in the variables viewer:
The watch section allows you to enter arbitrary Julia expressions that are evaluated whenever the program pauses and the result is shown:
The call stack section allows you to look at the content of any stack frame, i.e. when you click on a different function there it will show the local variables for the selected stack frame. You can also restart code execution at any stack frame by clicking the small restart icon next to a given entry here:
Note that this last feature can be quite brittle, in particular if your functions modify any global state.
If your code throws an exception, you get a nice exception view:
You can also configure the behavior of the debugger in the face of exceptions in the BREAKPOINTS part of the UI.
The breakpoints view has another option called Enable compile mode:
The functionality of this option is the following:
If you select this option, breakpoints that are set in any function that is called from the current stack frame will no longer pause code execution. In our example, if you have paused in function foo and then select this option, a breakpoint in bar would no longer pause execution. Breakpoints in foo would still pause the debugger.
Why would you ever want to use this feature?
Your code will run a lot faster with this option enabled.
If you encounter any issue when using the debugger, Please do let us know about it over at the Julia VS Code repository.
